LT7
Automatic. Technological. High-performing

Watch the video

Unlimited possibilities with no compromise

Choose the optimal loading and unloading length according to your production needs. Optimize your production flows, control two machines with a single operator by choosing your LT7 "right-handed" or "left-handed" version

LT7
Haven’t you decided which configuration yet?
Don’t worry, we are there to advise you
Ask our experts

Loading
Unloading
Cutting area

Convenient solutions for uninterrupted work

You can load LT7 with round tubes, square tubes, rectangular profiles, open profiles, or special sections, either manually, with a bridge crane, or forklift. Always easily.

Production changes happen instantly and manual adjustments aren’t necessary. The universal support templates automatically adjust according to the type of workpiece. Lightweight, flexible tubes are supported with additional lateral guides during fast rotations. Heavy and stiff tubes are totally free to move using the integrated steel cylindrical rollers.

The rear loader is open and accessible. The loading chains, in addition to the bundle cradles, which can be quickly removed, allow you to select the most suitable loading configuration according to batch size or section. You can also integrate robotic loaders or automated storage systems.

Active Tools:
smart functions to improve your productivity

Let Active Tools handle the adjustments for you

Difficult jobs
Active Speed
Deformed tubes
Active Scan
Maximum productivity
Active Tilt
Automatic features to optimize laser cutting
Find out more


Insert value!

The automatic insertion unit for threaded inserts on workpieces expands the possibilities of the laser cutting system and simplifies production. A single processing step negates the need for intermediate handling or storage. Inserts from M4 to M12 (according to the tooling) are taken from a continuous feeding system and applied using an easily reconfigurable motorized tool.

Compacting parts to save material


Save time and material

Using the dynamic compaction (nesting) function, the LT7 sets the sequence of the parts to be cut along the tube to minimize the end-of-bar scrap, making unloading operations easier and faster.

The spoon sucks up the fumes and keeps the parts clean inside


Quality outside and inside

Avoid needing to clean inside the tube after laser cutting. Activated at any time without having to retool the machine, the tube cleaner device is inserted through a suction probe into the tube and collects waste and fumes generated during processing.

Choose the safety
for your job

LT7 is a Class 1 system. There is no risk of coming into contact with laser beam emissions and reflections during operation. Because it is important to work in total safety in compliance with the highest standards dictated by EC regulations.

Special glass and a properly sealed cutting area protect you from the risks of laser radiation, while an independent safety system allows you to introduce a new tube beam without interrupting production.

Integrate Lasertube and tube bender with All-In-One

When bending a laser-cut part, elongation resultss in the curved areas that shift the previously made geometries.

BLM GROUP Lasertubes and tube bending machines automatically solve these errors by exchanging information on the mechanical characteristics of the tube and making corrections to compensate for elongation.

That's how you get perfection from the first part!


Discover our All-In-One technology

CF MOTO - Increased Productivity with Versatile Systems for Motorcycle Frames
CF MOTO

Motorcycles

They have focused on quality and production flexibility to stay competitive in the global marketplace.

Find out how they did it with All-In-One.

Find out more
markSTAHL - Produces bent and laser cut tubes right from the start.
markSTAHL

Contractor

They eliminated scraps and trial and error and now they cut laser and bend right from the start.

Find out how they achieved this with All-In-One.

Find out more
EDAG - Rapid prototyping with laser cutting and bending
EDAG

Research and development

Excellent for prototyping and solving laser cutting and bending issues that could arise upstream.

Find out how it did it with All-In-One.

Find out more
DuPont - Diversify production with flexible production systems
DuPont Medical

Medical

DuPont Medical diversified their production capacity and expanded their market.

Find out how they did it with ELECT and LT5.10.

Find out more
Arrow - Prototyping at laser-fast speed
Arrow Special Parts

Motorcycle

It has combined flexibility, part quality and productivity to beat the competition from emerging countries.

Find out how they did it.

Find out more
Touratech - Lasertube and Tube Bender to produce for the future
Touratech

Accessories

They rapidly develop innovative solutions that are increasingly attractive and cost-efficient.

Find out how they do it with flexible, easy-to-use systems.

Find out more

Increase your
production efficiency



ProTube provides reliable quotes and allows you to identify the best production strategy for both single parts and entire production batches.

It also allows you to manage logistics planning, monitoring and productivity analysis phases, with the possibility of integrating with your ERP.
.
All the systems communicate with each other and simulate the manufacturing process to support the solution of daily start-up and production changeover problems.

Find out more

LT7 technical information

Laser

Fiber source

3 kW

Cutting head

BLM GROUP 3D Tube Cutter

Loading

Bundle and single bar loading

fully automatic

Minimum loadable length

6'3'' (1,9 m)

Maximum loadable length

21' (6,5 m) – 27' (8,5 m)

Beam loading capacity

11023 lb (5.000 kg)

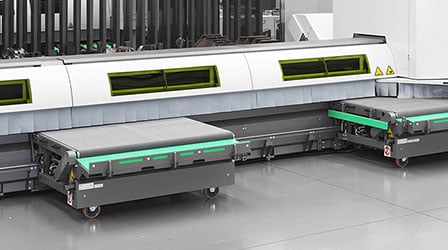

Unloading

Three programmable positions, rear conveyor belt and motorised front and rear collection benches.

Unloading length

15' (4,5 m) or 21' (6,5 m) or 27' (8,5 m)

Power consumption

Average drawn power

15 kW (O2 cutting gas)

Average drawn power

20 kW (N2 cutting gas)

Standard machine loading 21' (6.5 m) and unloading 27' (4.5 m)

Available versions

right or left

Machine weight

52690 lb (23,900 kg) (including fume extraction)

Basic layout of LT7 laser tube cutting system
Training
A complete package for you and your operators is included in the purchase.
Find out more
Maintenance
You can take care of it or we can do it for you.
Find out now
Awareness
Evaluating the investment with the help of one of our experts is easier.
Find out more
