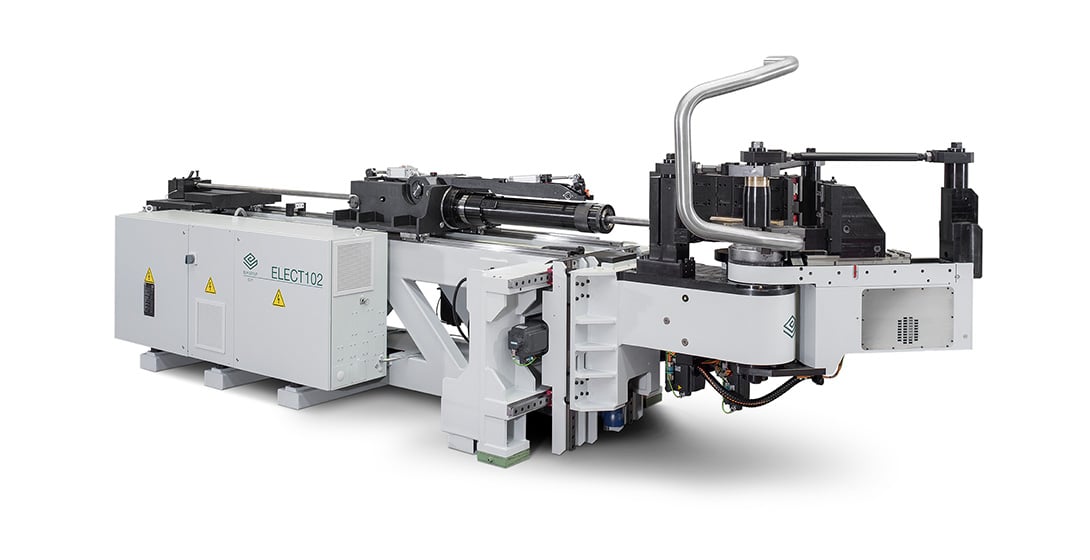

Simple because it is smart
No experience is needed to use ELECT: All movements are managed by an electric axis. Set-up is automatic, and all position and power parameters are saved together with the part program.
Round or special section tubes
Not only round, square, or rectangle, with ELECT you can also bend special profiles.
The modular die maintains uniformity along the entire curve, whatever section you are working on with the certainty of always having accurate results.
All parts are precise and repeatable
You can always count on repeatability and geometric precision of the bent part, regardless of material imperfections.
Using special programs that can be selected by the operator, ELECT compensates variations in material quality and dimensional accuracy.
Quality is power under your control
Small sections even for narrow radii. High-quality appearance. No waste.
The machine can be equipped with different levels of carriage boost power (up to 60,000 N).
The boost can be continuously controlled over the entire bending sequence controlling the material behavior, such as elongation and springback.
This ensures maximum process control to the last bend.
Quick changeover
Change the bending tools quickly and easily. With the quick-change system you exchange tooling in just 3 minutes.
The set-up is automatic and you are immediately ready for a new production.
ELECT helps you with manual loading
Manual loading is easy even with heavy tubes or multi-jointed mandrels because the machine knows how to help you.
Perform automatic loading
You can position the loader and/or feeder on the right or left and manage load and bending directly using the VGP3D software.
Or do everything for you
Run production 24/7 with a safe, autonomous, and productive turnkey solution, in which loading, bending, and unloading robots are entirely managed by VGP3D.
Always reliable
Sensors fitted on the machine automatically stop production if a problem occurs.
This means that processes are always reliable, safe, and prevent material waste even during unmanned operation.
Breakdown in process
It saves time and material. Add integrated nick and shear to eliminate a secondary process step.
Search for holes and welding
Precise and repeatable results every time: automatically detect holes, slots, and the weld seam.
In-line punching
Save time. Perform in-line punching and manage it from VGP3D to streamline your production.
Take no risks – choose your safety features
The pedal prevents dropping the parts at the end of the loading and unloading operations.
The two-hand activation control prevents the operator from coming into contact with moving parts.
To combine safety and efficiency, the laser scanner allows you to choose the size of the work area based on the size of the part you are working on.
The machine is provided with the CE declaration of conformity and the user and maintenance manual.
Integrate All-In-One Lasertubes and tube bending machines
Integrate All-In-One Lasertubes and tube bending machines
As a result of the bending, the elongation of the tube shifts the geometries previously cut with the laser, causing the part to be out of specification.
BLM GROUP Lasertubes and tube bending machines automatically solve these problems by exchanging information on the mechanical characteristics of the tube.
The position of the geometries to be cut is then changed to account for subsequent elongations.
You will always produce laser-cut and bent parts right from the start.
Motorcycles
They have focused on quality and production flexibility to stay competitive in the global marketplace.
Find out how they did it with All-In-One.

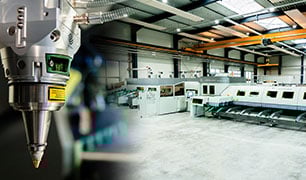

Contractor
They eliminated scraps and trial and error and now they cut laser and bend right from the start.
Find out how they achieved this with All-In-One.
Research and development
Excellent for prototyping and solving laser cutting and bending issues that could arise upstream.
Find out how it did it with All-In-One.
Medical
DuPont Medical diversified their production capacity and expanded their market.
Find out how they did it with ELECT and LT5.10.
Motorcycle
It has combined flexibility, part quality and productivity to beat the competition from emerging countries.
Find out how they did it.
Accessories
They rapidly develop innovative solutions that are increasingly attractive and cost-efficient.
Find out how they do it with flexible, easy-to-use systems.
Increase your
production efficiency
Increase your
production efficiency
Protube provides reliable quotes and allows you to identify the best production strategy for both single parts and entire production batches.
It also allows you to manage logistics, planning, monitoring, and productivity analysis with the capability to integrate to your ERP.
All the systems communicate with each other and simulate the production processes to simplify the operator's work and resolve any detected problems.
ELECT Technical Information
ELECT 40
ELECT 52
ELECT 63
ELECT 80
ELECT 102
ELECT 130
ELECT 150
Diameter
1.65" (42mm)
2.05" 52 mm
2.48" (63 mm)
3.15" (80 mm)
4.01" (102 mm)
5.02" (130 mm)
5.91" (150 mm)
Thickness
.079" (2,0 mm)
.079" (2,0 mm)
.157" (4,0 mm)
.157" (4,0 mm)
.157" (4,0 mm)
.098" (2,5 mm)
0,197" (5,0 mm)
Bending direction
RH or LH
convertible
RH or LH
convertible
RH or LH
convertible
RH or LH
convertible
RH or LH
RH or LH
RH or LH
Axes
9
9
9
9
10
12
12
X Accuracy
± .002" (0.05 mm)
± .002" (0.05 mm)
± .002" (0.05 mm)
± .002" (0.05 mm)
± .002" (0.05 mm)
± .002" (0.05 mm)
± .002" (0.05 mm)
Y Accuracy
± 0.05°
± 0.05°
± 0.05°
± 0.05°
± 0.05°
± 0.05°
± 0.05°
Z Accuracy
± 0.05°
± 0.05°
± 0.05°
± 0.05°
± 0.05°
± 0.05°
± 0.05°
Clamp edge
79.92" (2,030 mm)
79.92" (2,030 mm)
81.10" (2,060 mm)
81.10" (2,060 mm)
81.10" (2,060 mm)
130.98" (3,327 mm)
130.98" (3,327 mm)
Mandrel extractor
143.31" (3,640 mm)
143.31" (3,640 mm)
177.17" (4,500 mm)
177.17" (4,500 mm)
177.17" (4,500 mm)
250.39" (6,360 mm)
250.39" (6,360 mm)
Max. installed power
12.5 kW
12.5 kW
18.0 kW
18.0 kW
18.0 kW
35.0 kW
35.0 kW
Average drawn power
4.0 kW
4.5 kW
5.3 kW
5.3 kW
5.3 kW
6.5 kW
6.5 kW
Noise level
65 dB(A)
65 dB(A)
65 dB(A)
65 dB(A)
65 dB(A)
65 dB(A)
65 dB(A)
Weight
6,614 lb (3,000 kg)
7,276 lb (3,300 kg)
14,771 lb (6,700 kg)
14,771 lb (6,700 kg)
17,197 lb (7,800 kg)
35,054 lb (17,600 kg)
35,054 lb (17,600 kg)
