AST30
Tube End-Forming Machine with
Up to 8 Tons of Thrust.

Watch the video

Choose the configuration that best suits your needs.

Evaluate the ideal solution for you, depending on the work you want to do.

AST30 - Hydraulic end-forming machine for tubes up to 40 mm in diameter and thrust up to 80 kN

6 fixed passes

AST30 - Hydraulic end-forming machine for tubes up to 40 mm in diameter and thrust up to 80 kN

5 rams + 1 rotary tool

Single punch advancement tube end-former

All the power you need, only
when you need it.

The AST30 can be equipped with a wide variety of ram tools to perform tapering, expanding, reducing, facing, cutting, flange insertion, deburring, single or double flare jobs.

The single punch advancement maximizes feed speed and eliminates constraints around the clamping area to increase part feasibility and efficiency.

Focus on feasibility.

Forming on both ends of the tube in automatic mode


Form both ends at once.

Reduce cycle time. With the automatic head and tail management, you are able to form both ends of the part simultaneously.

Quick ram tooling change on tube end-forming machines


Quick ram tool change.

Exchange ram tools in no time at all with the efficient quick connection method and be ready for your next production run.

Orbital scoring system on all-electric tube end-forming machines.

And what about trimming?
Do it on the machine.

Perform the scoring or cut-off operation directly on the machine in a simple, fast and clean way. Avoid annoying part reworking which is typical of pre-bent parts that must be aligned for the forming operation.

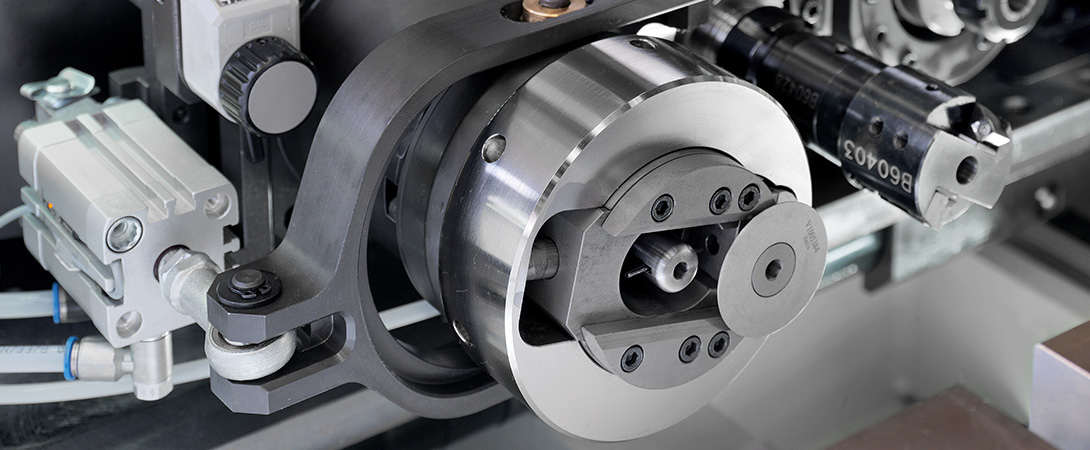

Tube end-forming machine clamp



Optimal position.
No rejects.

The part is positioned simply and safely in the clamp, increasing the repeatability and eliminating rejects and defects on the tube by using the pre-clamping system.

AST30 Applications.

End-formed tube
End-formed tube for fitting
Tube end-formed with a BLM GROUP AST30
Tube end-formed on both sides
Tube end-formed with a BLM GROUP AST30
Tube end-formed on both sides
Bent and end-formed with flange
Bent and end-formed steel tube
Bent and end-formed tube
Bent and end-formed tube with pre-fitted nut
Bent and end-formed tube
Special protective window for safety during laser cutting

Choose the safety
for your job.

AST30 is CE certified and designed to the strictest safety standards.

The two-hand activation control prevents the operator from coming into contact with the clamp when loading the part.

The work area is completely closed. The safety-interlocked door is equipped with a large Plexiglas window to control all stages of the work cycle.

The electro-pneumatic clamping device allows the workpiece to be positioned safely at all times.

PLC control of the AST30 end-forming machine



Easy to learn.
Very easy to use.

The PLC, with Siemens programming terminals, can automatically manage the machine ensuring maximum efficiency with no need for manual tuning.

Choose automated solutions
and work 24/7.

Integrate your machine with one of the many automatic loading solutions available:
from simple automatic loaders to vibrating feeders to pre-load connector fittings, and robotic handling systems.

Tube end-forming machines with automatic loader
Tube end-forming machines with automatic loader and vibrating feeder
Tube end-forming machines with robot loading

Tube end-forming machines with automatic loader



Create your own working line.

Produce bent and end-formed parts in one efficient work cycle. Eliminate secondary operations, additional handling, and storage of semi-finished products. Manage everything from a single point of control.

Our tube end-forming and bending machines are designed to be integrated into complete production processes, so you can optimize production, save time, and dedicate your staff to activities with higher added value.

But integration is more than just that...

Discover our All-In-One technology

AST30 Technical Information.

Technical specifications

Maximum workable diameter

1.6'' (40 mm)

Maximum working stroke

3.5'' (90 mm)

Thrust

80 kN

Clamp closing time

100 Kn

Weight of the machine

3860 lb (1750 kg)

Basic layout of the AST30 tube end-forming machine
